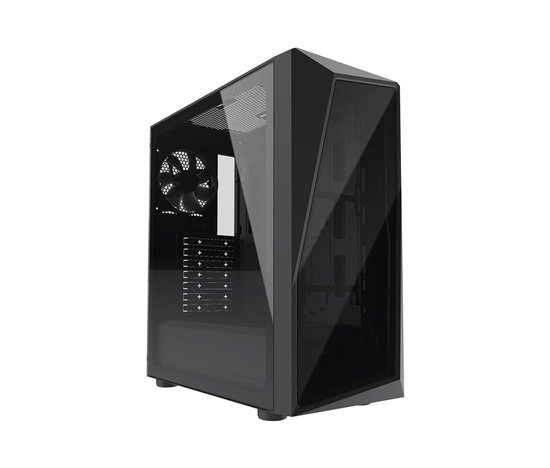

Like a geode cradling glistening crystals within, CMP 520L’s asymmetrical front panel design frames any fans that the user chooses to install as unique centerpieces on the build.
Ample mesh provides generous intake for efficient cooling as well as dust filtration, extending the lifespan of installed components while allowing them to operate at maximum capacity.
The perforated power supply shroud accommodates both active and passively cooled PSUs, while keeping cables neatly tucked away for a tastefully sleek build.
CMP 520L boasts ample clearance and supports graphics cards up to 350mm in length and CPU coolers up to 161mm in height, so users can effortlessly upgrade components to match their gaming preferences.
TECHNICAL SPECIFICATIONS
Product Number | CP520-KGNN-S03 |
Exterior Color | Black |
Material | Exterior - Steel, Plastic Left Side Panel - Tempered Glass |
Dimensions (L x W x H) | incl. Protrusions - 439x 204 x 463mm Body size - 432 x 204 x 448mm |
Volume | 41.34L |
Motherboard Support | Mini-ITX, Micro-ATX, ATX |
Expansion Slots | 7 |
Drive Bays | 5.25" ODD - 0 3.5" HDD - 2 2.5" SSD - 2 |
I/O Panel | USB Ports - 1 x USB 3.2 Gen 1 Type A,1 x USB2.0 Audio In / Out - 1 x 3.5mm Headset Jack (Audio + Mic) |
ARGB Controller | N/A |
Pre-installed Fan(s) | Top - N/A Front - N/A Rear - 1x MasterFan Lite |
Fan Support | Top - 2 x 120mm, 2 x 140mm Front - 3 x 120mm, 2 x 140mm Rear - 1 x 120mm |
Radiator Support | Top - 120mm/240mm* (*RAM height below 35mm) Front - 120/140/240/280mm Rear - 120 mm |
Clearances | CPU Cooler - 161mm Power Supply - 160mm Graphics Card - 350mm(w/o front fans & radiator) |
Cable Routing | Behind MB Tray - 18.5mm |
Dust Filters | Top, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 Years |
